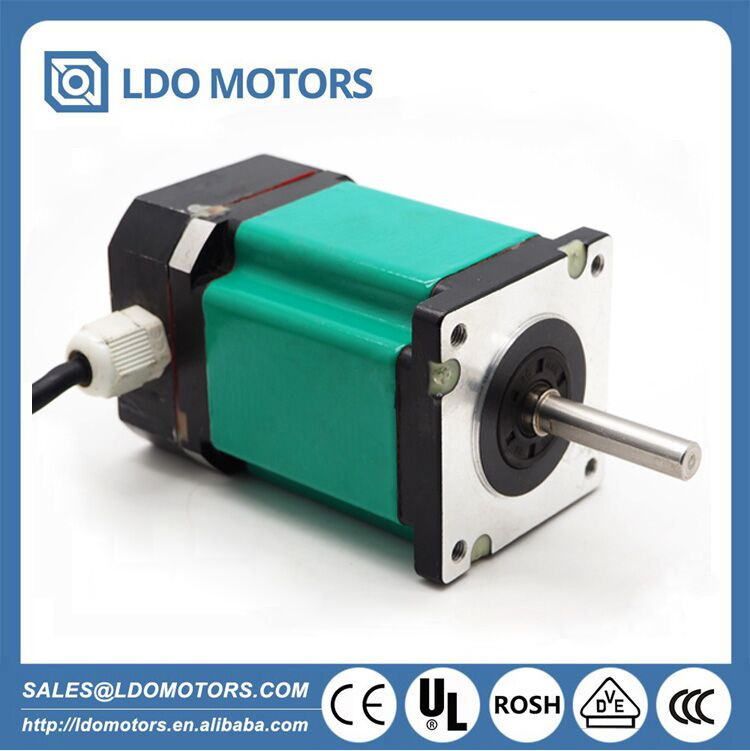

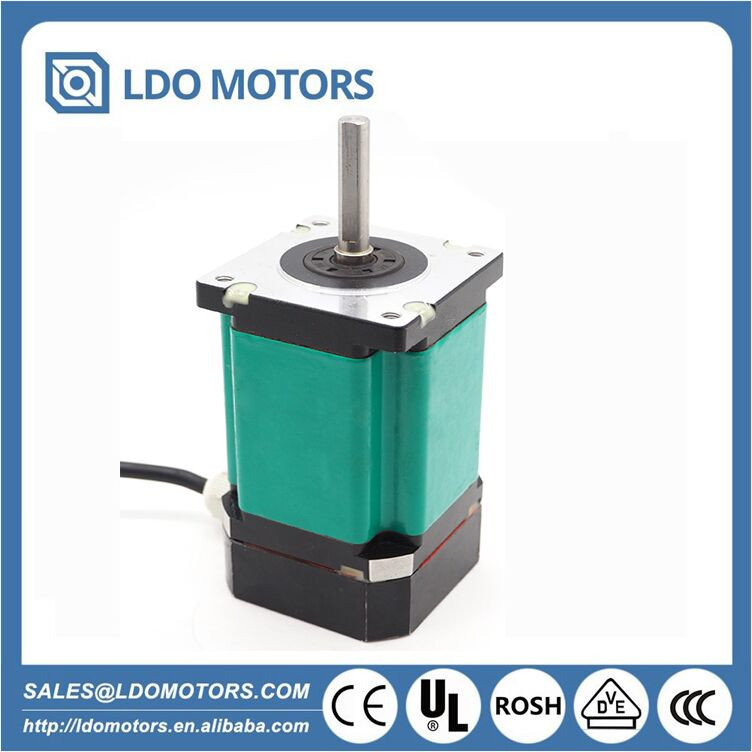

Waterproof Stepper Motor 60mm, NEMA24 Stepper Motor Manufacturer

FOB Reference Price:Get Latest Price
US $42-100 / Pieces | 1 Piece/Pieces (Min. Order)
Contact Supplier Start Order
Loading...
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
LDO MOTORS
Model Number:
60STH-xxxxWP
Phase:
Two
Type:
Hybrid Waterproof
Certification:
CE, ROHS
Step Angle(degrees):
1.8°(200steps/rev)
Holding Torque:
23kg.cm
Current / Phase:
2.5A
Ingress Protection:
IP68
Frame size:
60*60mm
Leads:
4 wire
Shape:
Square
Usage:
Industrial
Protect Feature:
Enclosed
Function:
Control
Speed:
Low speed
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
standard export packing
Port
shenzhen or hongkong
Lead Time :
4-5 weeks

Our Superiority:

1) No MOQ limited

2) Short Lead-Time

3) Quickly response in time

4) Good Pre/After Sales Service



Step Angle:

1.8 Degree

Step Angle Accuracy:

±5% (full step, no load)

Resistance Accuracy:

±10%

Inductance Accuracy:

±20%

Temperature Rise:

80DegreeC Max. (rated current,2 phase on)

Ambient Temperature:

-20~+50DegreeC

Insulation Resistance:

100M(Ohms) Min. ,500VDC

Dielectric Strength:

500VDC for one minute

Shaft Radial Play:

0.02Max. (450 g-load)

Shaft Axial Play:

0.08Max. (450 g-load)

Max. radial force:

75N  (20mm from the flange)

Max. axial force:

15N

Holding Torque:

28 Kg.cm

Unipolar or Bipolar

Model No.

Current

/Phase

Holding

Torque

Leads

Number

Weight

Length

Single Shaft

LDO-60STH97-2504AWP

A

Kg.cm



kg

mm

2.5

23

4

1.5

97
