35mm PM Stepper Motor

FOB Reference Price:Get Latest Price
US $2-5 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
LDO MOTORS
Model Number:
35BY48
Phase:
Four
Type:
Permanent Magnet
Certification:
CE, ROHS
Step Angle(degrees):
7.5°-15°
Current / Phase:
0.22-0.71A
Holding Torque:
0.45-0.5 kg.cm
Frame size:
35mm
Leads:
6 wire
Usage:
Industrial
Protect Feature:
Enclosed
Function:
Control
Speed:
Low Speed
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Packing
Port
shenzhen/HK
Lead Time :
4 weeks

Our 35mm Linear PM Stepper Motor series features a permanent magnet stepper motor and a non-captive design. This design allows for a compact form factor and low cost. Customize the pitch of the lead screw to adjust between travel speed and precision. Typical applications include microscope machines, medical instruments, dimming systems, inspection machines etc. Choose a baseline version or request your own customized configuration.

Features:

  • Non-captive design – motor moves along the lead screw
  • Compact permanent magnet stepper construction
  • High performance at a low cost
  • A wide range of screw sizes available
  • CE and RoHs approved
  • Customizations on request

The LDO Advantages:

  • No MOQ limited
  • Short Lead-Time
  • Quickly response in time
  • Good Pre/After Sales Service



Specification:

Mode

Step Angle

No. of Phase

Voltage

(V)

Current

(A)

Resistance

(Ω)

Holding Torque

(g.cm)

Pull-in Torque

(g.cm)

Detent Torque

(g.cm)

Leads Number

35BY48L-01

7.5

4

12

0.22

60

520

50(at 200Hz)

125

6

35BY24L-01

15

4

24

0.28

85

450

110(at 100Hz)

125

6

35BY48S-01

7.5

4

5

0.71

7

450

60(at 200Hz)

75

6

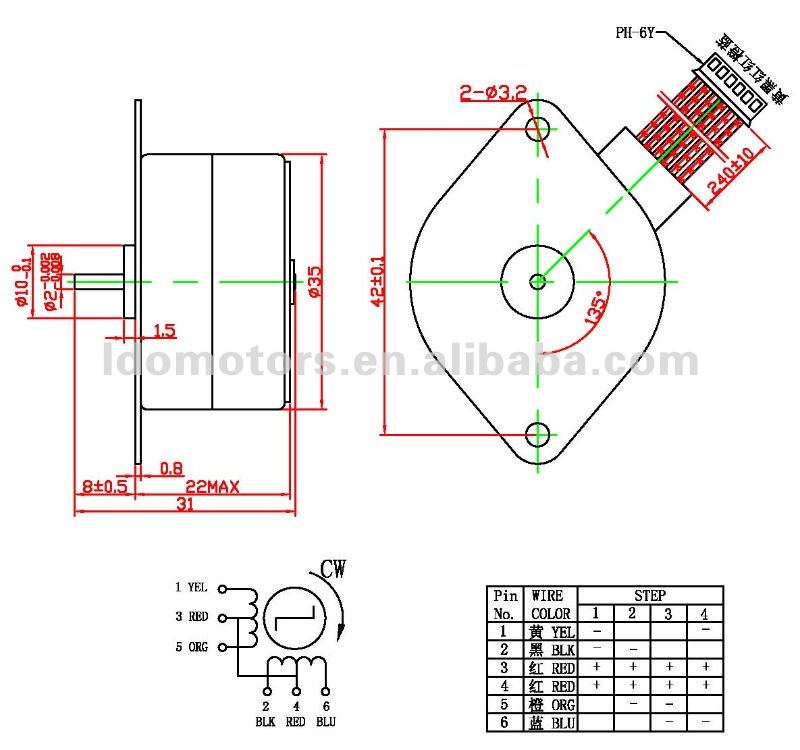

LDO-35BY48L02 PM Stepper.jpg
