Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: LDO MOTORS
  • Model Number: 57STH**-L***N
  • Phase: Two
  • Type: Hybrid
  • Certification: CE, ROHS
  • Step Angle(degrees): 1.8°(200steps/rev)
  • Current / Phase: 0.5-2.3A
  • Push Torque: 100-800N
  • Structure: Captive with External Driver
  • Full Step Length: 0.004-0.04mm
  • Frame size: 57*57mm
  • Leads: 4 or 6 wire
  • Shape: Square
  • Usage: Industrial
  • Protect Feature: Enclosed
  • Function: Control
  • Speed: Low Speed

Packaging & Delivery

Packaging Details Standard Export Packing with Foam Lining
Delivery Time 4-5 weeks

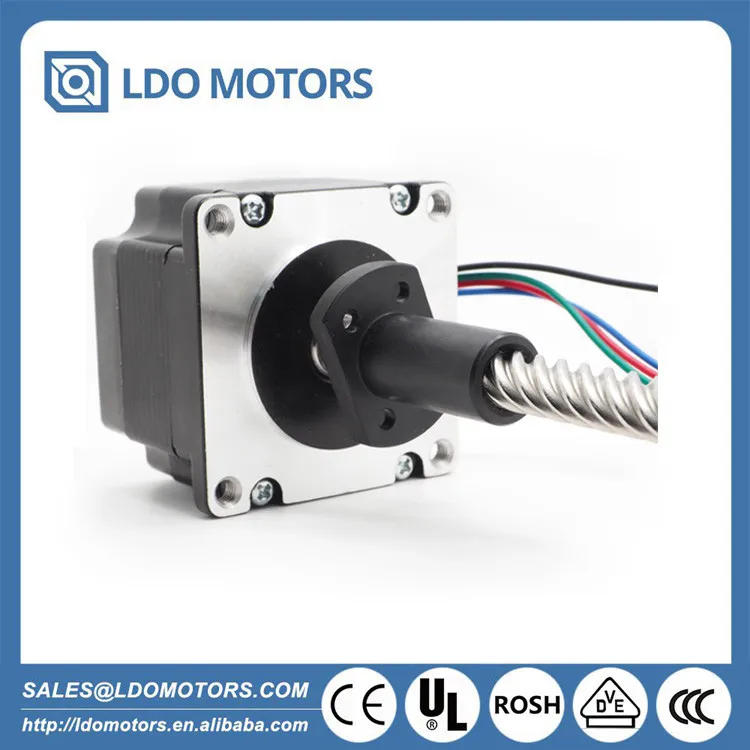

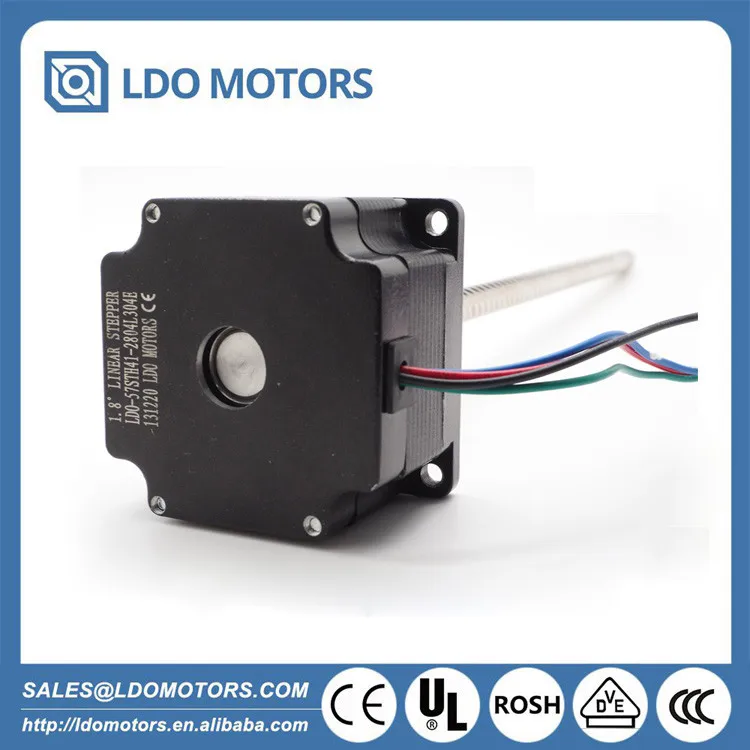

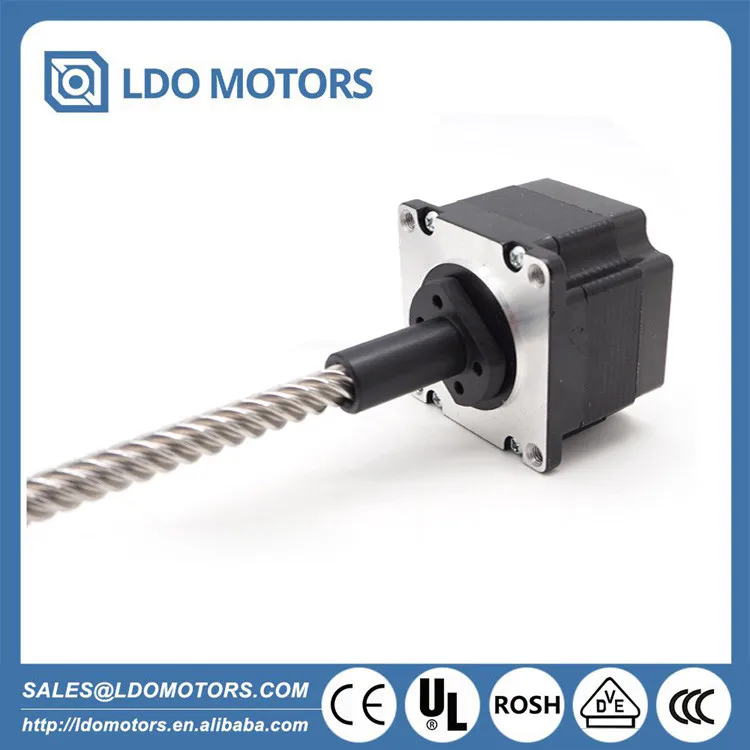

The 57mm Linear Hybrid Stepper Series is available in three configurations: captive, non-captive and external. Custom anti-backlash nuts are available for the externally driven configuration. Customize the lead screw to adjust between travel speed and torque. Typical applications include 3D printer, robot, CNC etc.

Features:

  • Available in captive, non-captive and externally configurations
  • High performance at a low cost
  • A wide range of screw sizes available
  • Anti-backlash nut available in PEEK, PTFE and POM
  • CE and RoHs approved
  • Customizations on request

The LDO Advantages:

  • No MOQ limited
  • Short Lead-Time
  • Quickly response in time
  • Excellent Pre/After Sales Service



Specification:

52mm External Driver type

MODEL NUMBER

Lead Numbers

Resisitance Of Phase



Inductance Of Phase



Current

/Phase

Voltage

/Phase

Holding

Torque



Detend force

Rotor Inertia



mass

Kg

LDO-57STHXX-LxxxN



Ohms

mH

A

V

kg.cm

g.cm

g.cm2

kg

4

12

20

0.5

6

4.0

220

135

0.42

4

12

28

0.6

7.2

7.0

260

180

0.45

6

12

40

0.6

7.2

9.6

320

220

0.55

4

7.5

22

0.88

6.6

9.8

320

220

0.55

4

12

20

0.5

6

4.0

400

400

0.6

 4

1.65

6.0

2.3

3.8

15.1

700

460

1.0
