25mm PM linear Stepper Motor for CNC machine

FOB Reference Price:Get Latest Price
US $10-20 / Pieces | 3 Piece/Pieces (Min. Order)
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
LDO MOTORS
Model Number:
25BYZ
Step Angle(degrees):
15°(24steps/rev)
Phase:
Two
Type:
Permanent Magnet
Current / Phase:
0.23-0.5A
Certification:
CE, ROHS
Push Torque:
7.5-30N
Structure:
Non Captive
Frame size:
25mm
Leads:
4 or 6 wire
Shape:
Round
Usage:
Industrial
Protect Feature:
Enclosed
Function:
Control
Speed:
Low Speed
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Packing
Port
HK
Lead Time :
Quantity(Pieces) 1 - 10 >10
Est. Time(day) 15 To be negotiated

Our 25mm Linear PM Stepper Motor series features a permanent magnet stepper motor and a non-captive design. This design allows for a compact form factor and low cost. Customize the pitch of the lead screw to adjust between travel speed and precision. Typical applications include microscope machines, medical instruments, dimming systems, inspection machines etc. Choose a baseline version or request your own customized configuration.

Features:

  • Non-captive design – motor moves along the lead screw
  • Compact permanent magnet stepper construction
  • High performance at a low cost
  • A wide range of screw sizes available
  • CE and RoHs approved
  • Customizations on request

The LDO Advantages:

  • No MOQ limited
  • Short Lead-Time
  • Quickly response in time
  • Good Pre/After Sales Service

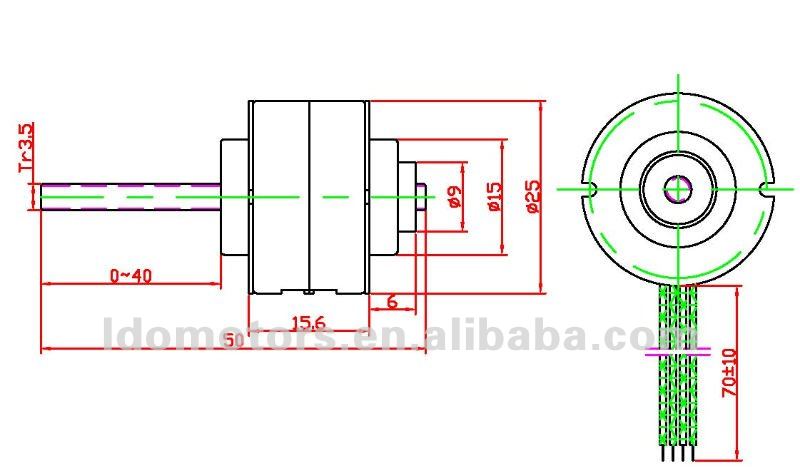

Specification:

Non-Captive PM Linear stepper motor

Mode

Step Angle

No. of Phase

Voltage

(V)

Current

(A)

Resistance

(Ω)

Step Avail

(mm)

Push Torque

(N)

Journey

(mm)

Leads Number

25BYZ-B01

15

2

12

0.23

53

0.0417

25

40

4

25BYZ-B02

15

2

6

0.5

12

0.0417

7.5

40

4

25BYZ-B03

15

2

12

0.5

24

0.0417.

30

40

4

25BYZ-B04

15

4

5

0.23

22

0.0417

30

40

6



Product Category
About us



Certificate
contact us
FAQ

Q: How do I choose a suitable stepper motor for my application?

A: There are several important criteria to consider: holding torque, physical size (NEMA size, length of motor etc.), supply voltage, and supply current etc. Once you determine these key criteria, we can find a suitable model for you. Feel free to contact us, we are more than happy to help you with the selection process.

Q: I need a non-standard motor for my application, can you help?

A: Certainly, most of our customers request custom configurations in one form or another. If you plan on replacing a motor in an existing application, just send us a drawing or sample and we can help you find a suitable replacement. Alternatively, contac    Q: How long should I expect the lead-time/delivery to be?

A:  If you are ordering samples of standard models, we can usually have them shipped and delivered within 5 days by air. When requesting custom motors, please allow us a 4-5 week lead-time.

Q: How are your products delivered?

A: We are very flexible with shipping and have dealings with most major courier services around the world. When placing an order, simply provide us a shipping address and contact information, we will handle the rest. If there is a forwarder or courier you prefer to use, just let us know and we will accommodate.

Q: What can you tell me about the quality of your motors?

A: Delivering quality products is an absolute priority for us at LDO. We have test procedures throughout the manufacturing process starting from individual components. If you need a specialized motor from us, we also augment our existing test plans with custom testing solutions. In the rare case that an issue does arise, we will work with you to solve any problems in a timely and transparent manner.

Q: Do you provide OEM services? Can I request my own logo?

A: Yes, we can provide OEM services for volume production. Feel free to talk to us about your branding needs.
