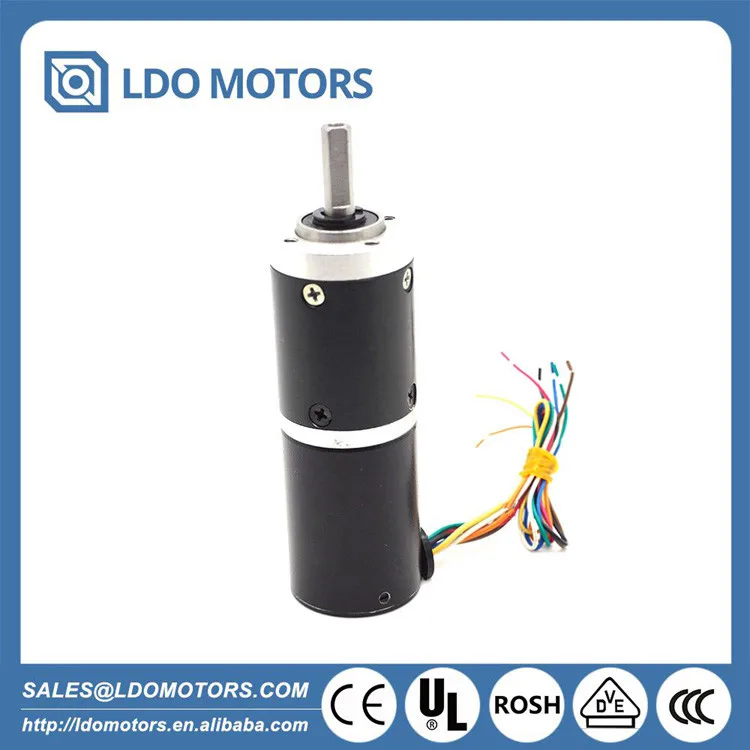

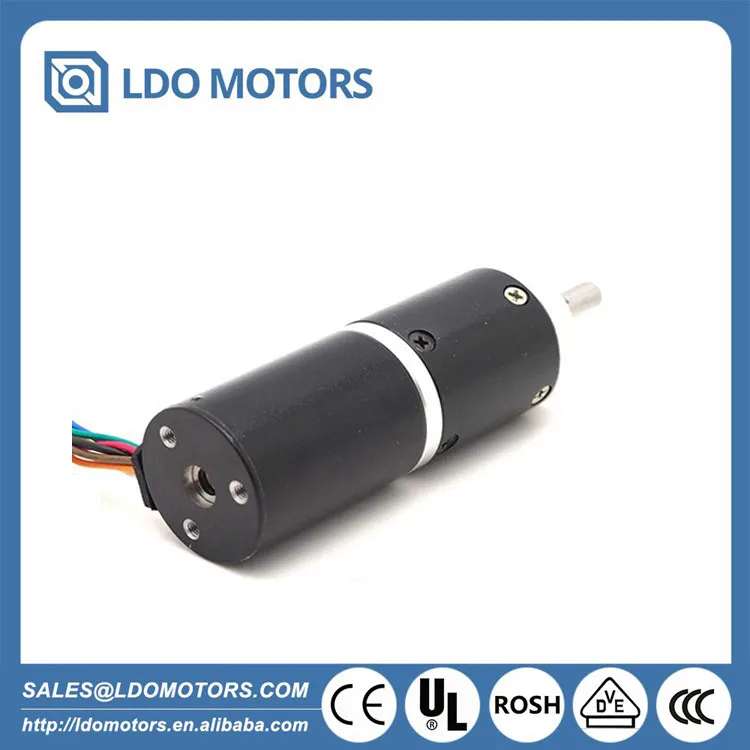

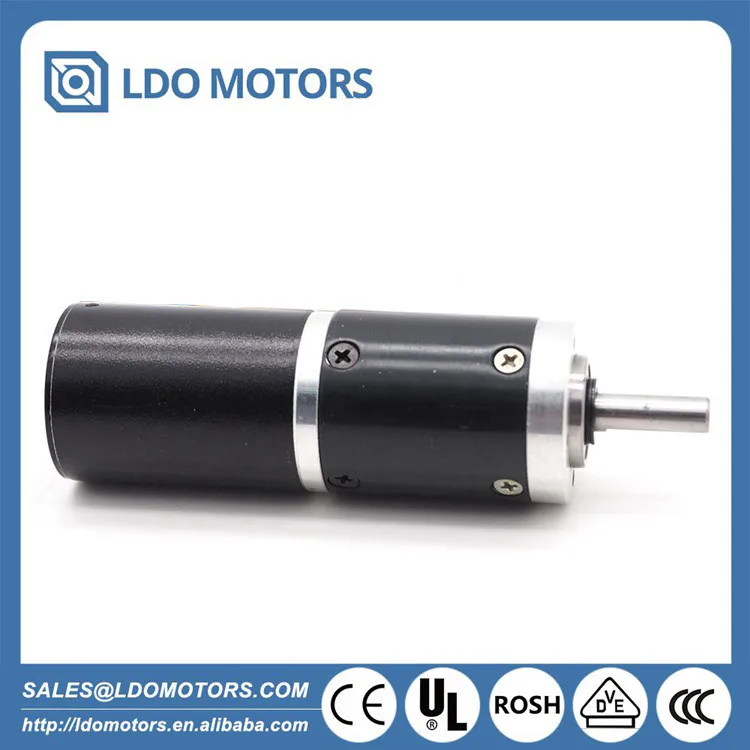

NEMA 11 planetary geared Brushless motor, 28mm BLDC motor with planetary gearbox

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
LDO MOTORS
Model Number:
28BLR38-****-28JX20K
Usage:
Home Appliance, Industry, Industrial
Certification:
CE, ROHS
Type:
Gear Motor
Torque:
18.5-1320 mN.m
Construction:
Permanent Magnet
Commutation:
Brushless
Speed(RPM):
7-729 RPM
Continuous Current(A):
0.15-0.2A
Output Power:
1.0-1.9W
Voltage(V):
24V & 5V
Protect Feature:
Enclosed
Function:
Control
Phase:
Three Phase
Speed:
High Speed
Structure:
Geared BLDC motor
Shape:
Round
SupplyAbility
SupplyAbility:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard Export Packing

Our Superiority:

1) No MOQ limited

2) Short Lead-Time

3) Quickly response in time

4) Good Pre/After Sales Service



* Motor Specification:

Winding Type:

Star, 3 phase, 4 poles

Hall Effect Angle:

120 Degree

Shaft Runout:

0.025mm

Radial Play:

0.02mm @ 450g

End Play:

0.08mm @ 450g

Insulation Class:

B

Insulation Resistance:

100M(Ohms) Min. ,500VDC

Dielectric Strength:

500VDC for one minute

Max. radial force:

15N (10mm from the flange)

Max. axial force:

10N

Rated Voltage:

24VDC (or customize)

Rated Speed:

3000~10000RPM

Rate Torque:

0.007~0.05Nm



*Gearbox Specifications

Reduction Ratio

3.7

5.2

14

19

27

51

71

100

139

264

Number of Gear Trains

1

1

2

2

2

3

3

3

3

4

Length of Gear Box

31.5

31.5

40.0

40.0

40.0

48.5

48.5

48.5

48.5

57.5

Max.Permissible load in a short time

         Kg.cm

5

5

10

10

10

30

30

30

30

30

LDO-28BLR38-2430-28JX20K

No-load Speed         RPM

810

577

214

158

111

59

42

30

21

11

Rated Speed           RPM

540

384

142

105

74

39

28

20

14

7

Rated Torque          mN.m

18.5

26

70

95

135

255

355

500

695

1320

LDO-28BLR38-2440-28JX20K

No-load Speed         RPM

1081

769

285

210

148

78

56

40

28

15

Rated Speed           RPM

729

519

192

192

100

52

38

27

19

10

Rated Torque          mN.m

25.9

36.4

98

133

189

357

497

700

973

1848
